The PCAN-USB adapter enables straightforward connection to CAN networks. Its compact plastic housing makes it ideal for mobile applications.
The opto-decoupling guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The included PCAN-View CAN monitor for Windows® and the PCAN-Basic programming interface complete the package.
Technical Data
- Adapter for the USB port (full-speed mode, compatible with USB 1.1, USB 2.0 and USB 3.0)
- High-speed CAN connection (ISO 11898-2)
- Data transfer rates from 5 kbit/s up to 1 Mbit/s
- Timestamp resolution approx. 42 µs
- Complies with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Connection to CAN bus via D-Sub, 9-pin (according to CiA® 106)
- NXP CAN controller SJA1000 with 16 MHz clock frequency
- NXP CAN transceiver PCA82C251
- Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
- CAN termination can be enabled via solder jumper
- 5-volt power supply at the CAN connector can be switched on via solder jumpers, e.g. for external bus converters.
- Power supply via USB
- Extended operating temperature range from -40 to +85 °C

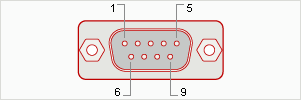

D-Sub pinout
| 1 | not assigned / optional +5 V |
| 2 | CAN-L |
| 3 | GND |
| 6 | GND |
| 7 | CAN-H |
| 9 | not assigned / optional +5 V |
For Downloads and Software visit the PEAK-System website directly.
